1. Design
1.1 Material

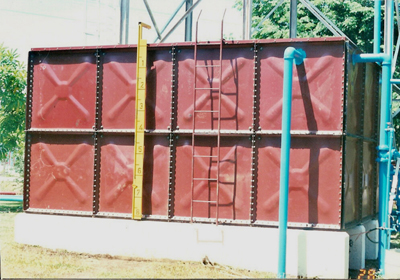

The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter panel manufactured from 4.5mm to 6.0mm thickness according to requirement. The internal surface will be coated with a layer of black bituminous paint and externally with red oxide.
1.2 Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
1.3 Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water.
The Top panel is supported by top panel support, which shall be made of mild steel material.
2. Accessories
2.1 Bolt. nut & washers
Mild steel material.
2.2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
2.3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness mild steel material according to the requirement.
2.4 Ladders and Level Indicator
Internal & external ladder shall be made of mild steel material. Ladder indicator shall be made of Aluminium c/w P.V.C ball float. |
